NP2RX | Neutrik

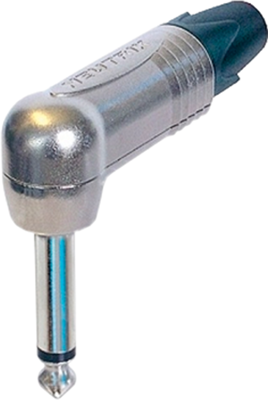

6.35 mm angle jack plug, 2 pole (mono), solder connection, metal, NP2RX
Unit Price (€ / pc.)
5.3074 € *
Available: 8 pcs.
Leadtime: 2 Weeks **
Total Price:
5.31 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3074 €
10 pcs.
4.8790 €
50 pcs.
4.4387 €
100 pcs.
3.9984 €
*incl. VAT plus shipping costs
**Subject to prior sale
Phono plugs series X, type NEUTRIK NP.
6.35 mm, extra slim 1/4 inch version for high insertion density, for professional applications, improved collet strain relief for reliable cable retention, robust die cast housing (nickel-plated or black chrome plating); Dielectric strength: 1.0 kVDC. Rated current per contact: dependent on the mating part. Rated voltage: 50 V. Cable diameter: 4.0 to 7.0 mm. Conductor cross-section: 1.0 mm² (AWG 18). Connection type: solder terminals. Contact material: CuZn39Pb3, 2.0 µm nickel-plated, black bushing. Operating temperatures: - 20 to +65 °C.
Angled.
Technical attributes (type, number of poles, contact finish): NP2RX, 2 - pole, nickel - plated
Technical specifications
| Version | plug | |
| Shell Material | metal | |
| Contact connection | solder connection | |
| contact surface | silver-plated | |
| Assembly | cable assembly | |
| Pin Diameter | 6.35 mm | |
| Pin number | 2 pole |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
