NP3X-B | Neutrik

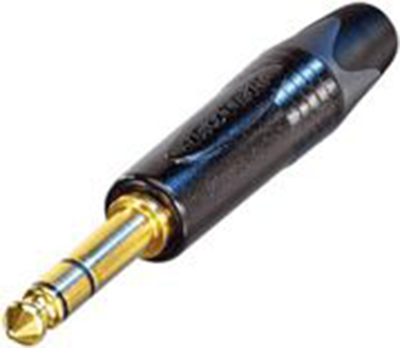

6.35 mm jack plug, 3 pole (stereo), solder connection, metal, NP3X-B

Order No.: 39F206
EAN: 4099889855753
MPN:
NP3X-B
Series: NP
NP3X-B Neutrik Phono Connectors
Image may differ
Unit Price (€ / pc.)
8.0206 € *
Available: 15 pcs.
Leadtime: On Request **
Total Price:
8.02 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0206 €
10 pcs.
7.3780 €
50 pcs.
6.7116 €
100 pcs.
6.0452 €
*incl. VAT plus shipping costs
**Subject to prior sale

Phono plugs series X, type NEUTRIK NP.

6.35 mm, extra slim 1/4 inch version for high insertion density, for professional applications, improved collet strain relief for reliable cable retention, robust die cast housing (nickel-plated or black chrome plating); Dielectric strength: 1.0 kVDC. Rated current per contact: dependent on the mating part. Rated voltage: 50 V. Cable diameter: 4.0 to 7.0 mm. Conductor cross-section: 1.0 mm² (AWG 18). Connection type: solder terminals. Contact material: CuZn39Pb3, 0.2 µm gold-plated, black bushing. Operating temperatures: - 20 to +65 °C.

Straight.

Technical attributes (type, number of poles, contact finish): NP3X - B, 3 - pole, gold - plated

Technical specifications
Ausführung Stecker
Farbe schwarz
Gehäusematerial Metall
Kontaktanschluss Lötanschluss
Kontaktoberfläche vergoldet
Montage Kabelmontage
Pindurchmesser 6.35 mm
Polzahl 3-polig
Logistics
Ursprungsland LI
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
