NRJ6HM-1-AU | Neutrik
6.35 mm jack panel socket, 3 pole (stereo), PCB connection, PA, NRJ6HM-1-AU
Unit Price (€ / pc.)
3.7009 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
3.70 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7009 €
10 pcs.
3.4153 €
50 pcs.
3.1059 €
100 pcs.
2.7965 €
400 pcs.
2.4633 €
*incl. VAT plus shipping costs
**Subject to prior sale

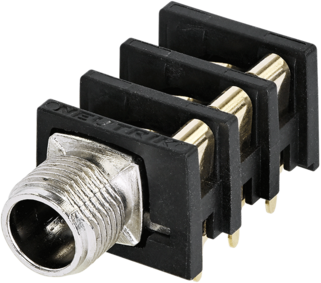

Stereo jack, NRJ6HM-1-AU, Neutrik
1/4" stereo jack, metal nose, gold plated contacts, efficient chassis ground connection, T+R+S normalling contact. Horizontal PCB panel mount jack featuring high board packing density by mounting on 15.88 mm (0.625 inch) minimum centers in rows or arrays. Mounting hardware must be ordered separately.
Features
- High boarded packing densities
- A retentions spring ensures optimum grip on inserted plugs, avoiding the chance of lost connection
- Meeting the requirements of EMC protection by efficient chassis grounding system
- T, R, S normalling contact
Technical specifications
| Ausführung | Buchse | |
| Farbe | schwarz | |
| Gehäusematerial | PA | |
| Kontaktanschluss | Leiterplattenanschluss | |
| Kontaktoberfläche | vergoldet | |
| Montage | Rückseitenmontage | |
| Pindurchmesser | 6.35 mm | |
| Polzahl | 3-polig |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
