NTP3RC | Neutrik

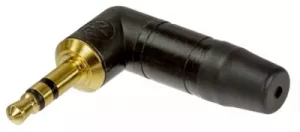

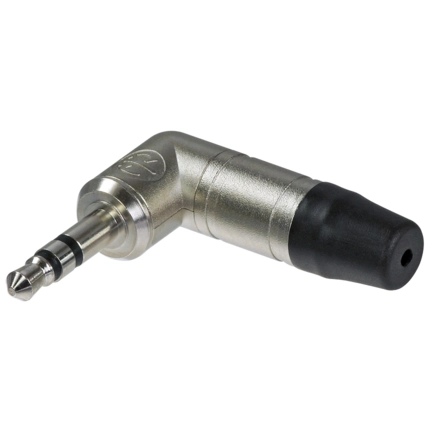

3.5 mm angle jack plug, 3 pole (stereo), solder connection, metal, NTP3RC
Unit Price (€ / pc.)
5.7834 € *
Available: 152 pcs.
Leadtime: 1 Week **
Total Price:
5.78 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7834 €
10 pcs.
5.0813 €
100 pcs.
4.4625 €
250 pcs.
4.2959 €
1000 pcs.
3.9984 €
*incl. VAT plus shipping costs
**Subject to prior sale
Angled jack plugs, 3-pole, type NEUTRIK NTP.
3.5 mm, with solder connection and collet; Cable diameter: 2.0 to 4.5 mm. Conductor cross-section: 0.22 mm² (AWG 24). Rated current per contact: max. 15 A. Contacts: CuZn39Pb3, 2.0 µm nickel-plated. Housing: ZnAl4Cu1. Operating temperatures: - 20 to +65 °C.
Type: NTP3RC, nickel - plated
Technical specifications
| Version | plug | |
| Colour | black | |
| Shell Material | metal | |
| Contact connection | solder connection | |
| contact surface | nickel-plated | |
| Assembly | cable assembly | |
| Pin Diameter | 3.5 mm | |
| Pin number | 3 pole |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
