NKPF-SR-A-5 | Neutrik
Device connection line, Europe, plug type E + F, angled on powerCON socket, straight, H07RN-F3G1.5 mm², black, 5 m, NKPF-SR-A-5
Unit Price (€ / pc.)
22.8123 € *
Available: 0 pcs.
Leadtime: On Request **

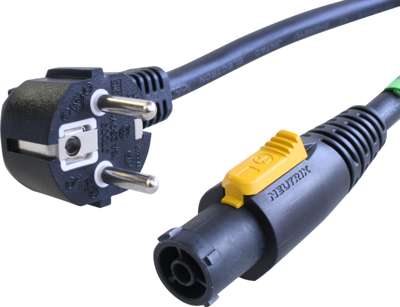

Connecting cable, NKPF-SR-A-5, NEUTRIK
Ready-made overmolded power cord in protection class IP65. The cable utilizes standard duty cord with 3 conductors with cross section 1.5 mm² or AWG 12.
Technical Data
- Color: black
- Country code: Europe
- Rated current: 16 A
- Length: 5 m
Cables are equipped with Neutrik powerCON TRUE1 NAC3FX-W and NAC3MX-W for extention cables, with an open end for termination of local connectors for "power in" supply cables or a right-angled Schuko plug.
Technical specifications
| Anschluss (1) | Stecker Typ E + F, abgewinkelt | |
| Anschluss (2) | powerCON-Dose, gerade | |
| Ausführung | Geräteanschlussleitung | |
| AWG-Leiterquerschnitt | AWG 12 | |
| Farbe | schwarz | |
| Kabel | H07RN-F3G1,5 mm² | |
| Kabellänge | 5 m | |
| Landeskennung | Europa | |
| Leiterquerschnitt | 1,5 mm² | |
| Nennstrom | 16 A |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
