NF2C-B/2-U | Neutrik
RCA plug, Cinchstecker, 16 A, löten
Order No.: 60F1064
EAN: 4099889856835
MPN:
NF2C-B/2-U
Unit Price (€ / pc.)
19.3137 € *
Available: 0 pcs.
Next delivery: 25 pcs. on 2025-01-09
Leadtime: 1 Week **

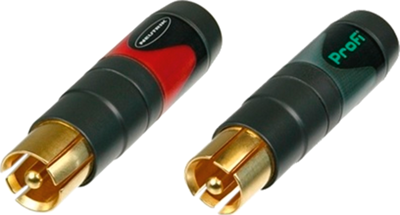

RCA plugs, type NEUTRIK NF2C-B/2.
For professional applications, made of brass, with black coating, red and black marker ring, gold-plated contacts; Rated current per contact: 16 A. Rated voltage: 50 V. Insulation resistance: min. 100 Gohm. Dielectric strength: 1.5 kVDC. Capacitance between contacts: max. 7.0 pF. Wiring: max. 2.5 mm² (AWG 14). Cable entry: 3.0 to 7.3 mm. Operating temperatures: –30 to +80 °C.
Type: NF2C–B/2, RCA plug
Technical specifications
| Version | plug | |
| Colour Marking | black | |
| Enclosure | black | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Pin number | 2 pole |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
