NL4FXX-W-L | Neutrik

Loudspeaker plug 4-pole, NL4FXX-W-L

Order No.: 80F0100
EAN: 7613187017636
MPN:
NL4FXX-W-L
Series: speakON FXX
Neutrik
NL4FXX-W-L Neutrik Speaker Connectors
Image may differ
Unit Price (€ / pc.)
5.0099 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
5.01 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.0099 €

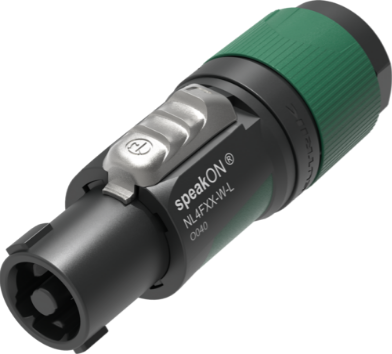

Loudspeaker plug, NL4FXX-W-L, Neutrik

4 pole speakON cable connector, screw terminal assembly, chuck type strain relief for cable diameters 10 to 16 mm. This product offers extremely reliable and robust cable connectors with a proven twist lock system. speakON cable connector features solid contacts with screw-type terminals including a stranded wire protection.

Features

  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Ergonomic design with slip-proof two-component molded housing
  • Unique locking bushing and strain relief for cable diameters 10 mm to 16 mm
  • Superior quality standard, extremely robust and reliable
  • Easy and reliable twist lock system
  • Improved kink protection by two-component bushing
Technical specifications
Version plug
Contact connection screw connection
Assembly cable assembly
Rated voltage 250 V
Rated current 37 A
Pin number 4 pole
Type of locking twist lock
Logistics
Country of origin CH
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
