NL4MPR | Neutrik

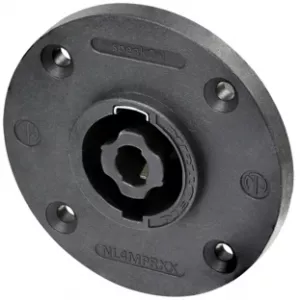

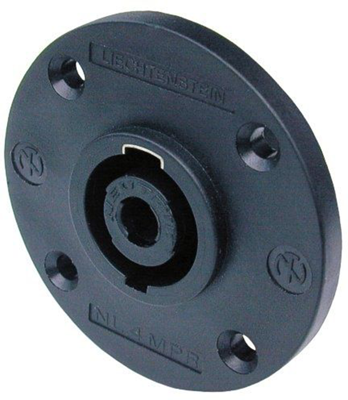

Speakers panel-mount socket, Lautsprechereinbaubuchse, 4-polig, 250 V, NL4MPR
As an alternative, we recommend the following item:
*incl. VAT plus shipping costs
Speaker connectors, series Speakon, type NEUTRIK NL.
Very rugged connector with reliable interlocking system, for quick and easy mounting, collet chuck strain relief for reliable cable clamping; Rated voltage: 250 VAC. Dielectric strength: 4.0 kVDC. Contact resistance: < 3.0 mohm, Contact material: brass, 4.0 µm silver plating. Housing: polyamide. Connection type: solderable screw terminals for stranded wire cables. Operating temperatures: - 30 to +80 °C.Certifications: UL, CSA.
Speaker chassis sockets, type NL.
4-pole, with 4.8 x 0.5 mm tab terminals, can also be used for the 2-pole plug version.
Technical attributes (type, flange version): NL4MPR, round
Technical specifications
| Version | plug | |
| Contact connection | flat plug connection | |
| Assembly | built-in mounting | |
| Rated voltage | 250 V | |
| Rated current | 40 A | |
| Pin number | 4 pole | |
| Type of locking | quick locking |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
