NMK-20U-1 | Neutrik

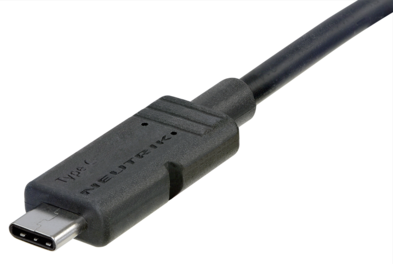

USB 3.1 connection line, USB plug type C to USB plug type C, 1 m, black, NMK-20U-1
Order No.: 13M3910
EAN: 7613187011993
MPN:
NMK-20U-1
Unit Price (€ / pc.)
71.6499 € *
Available: 0 pcs.
Leadtime: On Request **
USB-C, NMK-20U-1, NEUTRIK
The reversible USB Type-C cable with over molded flex relief and rugged cable fit and lock with NMC-* Chassis.
Features
- Shielded connection – high noise immunity and EMI protection
- Mates with conventional USB-C receptacles
- Push Pull mating design provides secure locking system if mated with NMC-*
- Guaranteed performance up to 10 Gb/s (USB 3.1 Gen.II compatibility)
- Reversible USB-C housing Provide power up to 100 W (@5A/20V)
Technical specifications
| Connection (1) | USB plug type C | |
| Connection (2) | USB plug type C | |
| Data transmission rate | 10000000000 mb/s | |
| Colour | black | |
| Cable length | 1 m | |
| USB Standard | USB 3.1 |
Download
Logistics
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
