NC3FAAV-0 | Neutrik

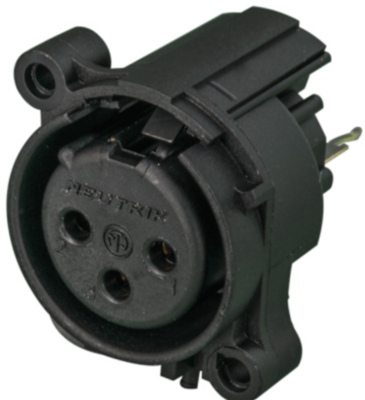

XLR panel socket, 3 pole, gold-plated, metal, NC3FAAV-0
Unit Price (€ / pc.)
1.0472 € *
Available: 10 pcs.
Leadtime: 1 Week **
Total Price:
1.05 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0472 €
10 pcs.
0.9639 €
50 pcs.
0.8806 €
100 pcs.
0.7854 €
*incl. VAT plus shipping costs
**Subject to prior sale
XLR Connector, NC3FAAV-0, NEUTRIK
3 pole female XLR receptacle, grounding: without ground/shell contact, vertical PCB mount, retention spring instead of latch.
Most cost-effective round plastic body XLR PCB mount panel connector. Front panel cutout and PCB layout 100% compatible to A series. "Tulip" type contact design with high contact pressure for highest durability. Flammability rating UL94HB.
FEATURES
- Selective gold plated contact and PCB termination area for best conductivity and solderability
Technical Data
- Version: Panel jack
- Contact connection: Solder connection
- Pin number: 3
- Protection class: IP 40
- Rated current: 6 A
Technical specifications
| Ausführung | Einbaubuchse | |
| Farbe | schwarz | |
| Gehäuse | Metall | |
| Kontaktanschluss | Leiterplattenanschluss | |
| Kontaktoberfläche | vergoldet | |
| Montage | Leiterplattenmontage | |
| Nennspannung | 50 V | |
| Nennstrom | 7.5 A | |
| Polzahl | 3-polig | |
| Verriegelung | Schnappverriegelung |
Download
Logistics
| Ursprungsland | LI |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
