NC3FAAV2 | Neutrik

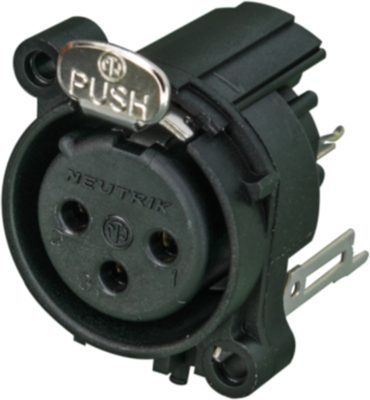

XLR panel socket, 3 pole, gold-plated, metal, NC3FAAV2
Unit Price (€ / pc.)
1.3090 € *
Available: 39 pcs.
Leadtime: 3 Weeks **
Total Price:
1.31 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3090 €
10 pcs.
1.2019 €
50 pcs.
1.0948 €
100 pcs.
0.9877 €
*incl. VAT plus shipping costs
**Subject to prior sale
XLR Connector, NC3FAAV2, NEUTRIK
3 pole female XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount.
Most cost-effective round plastic body XLR PCB mount panel connector. Front panel cutout and PCB layout 100% compatible to A series. "Tulip" type contact design with high contact pressure for highest durability. Push latch assembled. Flammability rating UL94HB.
FEATURES
- Selective gold plated contact and PCB termination area for best conductivity and solderability
Technical Data
- Version: Panel jack
- Contact connection: Solder connection
- Pin number: 3
- Protection class: IP 40
- Rated current: 6 A
Technical specifications
| Version | Einbaubuchse | |
| Colour | schwarz | |
| Enclosure | Metall | |
| Contact connection | Leiterplattenanschluss | |
| contact surface | vergoldet | |
| Assembly | Leiterplattenmontage | |
| Rated voltage | 50 V | |
| Rated current | 6 A | |
| Pin number | 3-polig | |
| Type of locking | Schnappverriegelung |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
