NC3FD-LX-BAG | Neutrik
XLR panel socket, 3 pole, silver-plated, 2.5 mm², AWG 14, metal, NC3FD-LX-BAG
Unit Price (€ / pc.)
6.7830 € *
Available: 89 pcs.
Leadtime: 8 Weeks **
Total Price:
6.78 € *
Price list
Quantity
Price per unit*
1 pcs.
6.7830 €
10 pcs.
5.9619 €
100 pcs.
5.2241 €
250 pcs.
5.0218 €
1000 pcs.
4.7005 €
*incl. VAT plus shipping costs
**Subject to prior sale

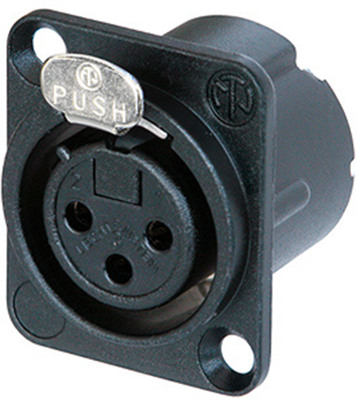

XLR Connector, NC3FD-LX-BAG, NEUTRIK
3 pole female receptacle, solder cups, black metal housing, silver contacts.
The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.
FEATURES
- Larger solder contacts for easier termination
- Optional connection to easily join pin1 to chassis ground
- All metal housing offers best overall RF protection and electromagnetic shielding
- D-style housing provides installation compatibility with industry standard D mounting dimensions
Technical Data
- Version: Panel jack
- Contact connection: Solder connection
- Pin number: 3
- Protection class: IP 40
- Rated current: 16 A
Technical specifications
| Version | panel socket | |
| AWG cross-section | AWG 14 | |
| Colour | black | |
| Enclosure | metal | |
| Contact connection | solder connection | |
| contact surface | silver-plated | |
| Cable cross-section | 2.5 mm² | |
| Assembly | PCB mounting | |
| Rated voltage | 50 V | |
| Rated current | 16 A | |
| Pin number | 3 pole | |
| Type of locking | snap lock |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
