NC3FDM3-V | Neutrik
XLR panel socket, 3 pole, silver-plated, 1.0 mm², AWG 18, metal, NC3FDM3-V
Unit Price (€ / pc.)
7.6874 € *
Available: 41 pcs.
Leadtime: 6 Weeks **
Total Price:
7.69 € *
Price list
Quantity
Price per unit*
1 pcs.
7.6874 €
10 pcs.
7.0686 €
50 pcs.
6.4379 €
100 pcs.
5.7953 €
*incl. VAT plus shipping costs
**Subject to prior sale

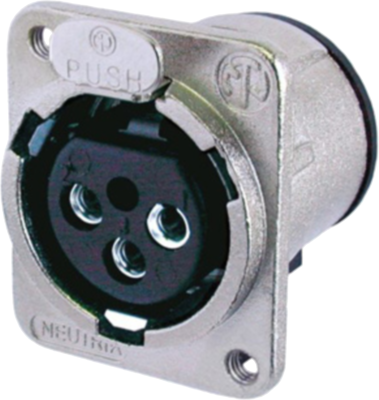

XLR Connector, NC3FDM3-V, NEUTRIK
3 pole female receptacle, vertical PCB mount, nickel housing, silver contacts, M3 mounting holes.
Universal D-size metal body XLR panel mount series for pcb mount applications. Insert is removable from shell for ease assembling.
FEATURES
- D-shape metal shell
- Front or rear panel mount
- Optimal RF protection using 3 shield contacts
Technical Data
- Version: Panel jack
- Contact connection: Solder connection
- Pin number: 3
- Protection class: IP 40
- Rated current: 6 A
Technical specifications
| Ausführung | Einbaubuchse | |
| AWG-Leiterquerschnitt | AWG 18 | |
| Farbe | schwarz | |
| Gehäuse | Metall | |
| Kontaktanschluss | Leiterplattenanschluss | |
| Kontaktoberfläche | versilbert | |
| Leiterquerschnitt | 1,0 mm² | |
| Montage | Leiterplattenmontage | |
| Nennspannung | 50 V | |
| Nennstrom | 6 A | |
| Polzahl | 3-polig | |
| Verriegelung | Schnappverriegelung |
Download
Logistics
| Ursprungsland | LI |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
