NC3FRX-BAG | Neutrik
XLR jack, 3 pole, silver-plated, 2.5 mm², AWG 14, metal, NC3FRX-BAG
Unit Price (€ / pc.)
8.568 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

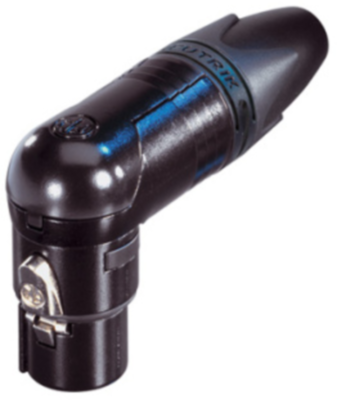

XLR cable connector, NC3FRX-BAG, NEUTRIK
3 pole right angle female cable connector, black metal housing, silver contacts.
Features
- Extra slim right-angle connector
- Unique cage design of female contact for low contact resistance and high integrity
- Female connector with improved solid metal latch which is larger and easier to handle
- 5 selectable cable outlet positions
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Sleek and ergonomic design - valuable and handy
Technical specifications
| Version | jack | |
| AWG cross-section | AWG 14 | |
| Colour | black | |
| Enclosure | metal | |
| Cable diameter | 3.5-8 mm | |
| Contact connection | solder connection | |
| contact surface | silver-plated | |
| Cable cross-section | 2.5 mm² | |
| Assembly | cable assembly | |
| Rated voltage | 50 V | |
| Rated current | 16 A | |
| Pin number | 3 pole | |
| Type of locking | snap lock |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
