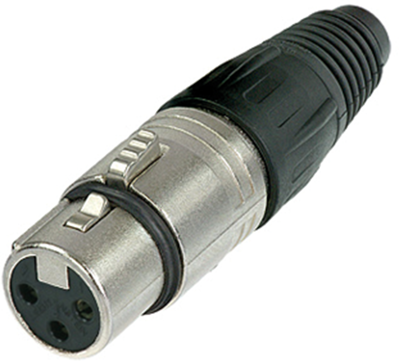

NC3FX | Neutrik
XLR jack, 3 pole, silver-plated, 2.5 mm², AWG 14, metal, NC3FX
Abgekündigt
Unit Price (€ / pc.)
6.3665 € *
Available: 17 pcs.
Leadtime: 10 Weeks **
Total Price:
6.37 € *
Price list
Quantity
Price per unit*
1 pcs.
6.3665 €
10 pcs.
5.6168 €
100 pcs.
4.9147 €
250 pcs.
4.7362 €
1000 pcs.
4.4268 €
*incl. VAT plus shipping costs
**Subject to prior sale
XLR circular connectors series X, type NEUTRIK NC.
3-pole, for fast and simple installation, with rugged metal housing, nickel-plated and collet strain relief for safe cable retention at maximum extraction force; Dielectric strength: 1.5 kVDC. Rated current per contact: 16 A. Cable connection: max. 2.5 mm² (AWG 14). Cable entry: 3.5 to 8.0 mm. Connection type: soldering. Operating temperatures: - 30 to +80 °C. Certifications: UL.
Straight jacks, type NC.
Contact material: bronze, 2.0 µm silver-plated on 2.0 µm nickel primer.
Technical attributes (type, housing design): NC3FX, nickel - plated
Technical specifications
| Ausführung | Kupplung | |
| AWG-Leiterquerschnitt | AWG 14 | |
| Gehäuse | Metall | |
| Kabeldurchmesser | 3,5-8 mm | |
| Kontaktanschluss | Lötanschluss | |
| Kontaktoberfläche | versilbert | |
| Leiterquerschnitt | 2,5 mm² | |
| Montage | Kabelmontage | |
| Nennspannung | 50 V | |
| Nennstrom | 16 A | |
| Polzahl | 3-polig | |
| Verriegelung | Schnappverriegelung |
Download
Logistics
| Ursprungsland | LI |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
