NC3FXS | Neutrik

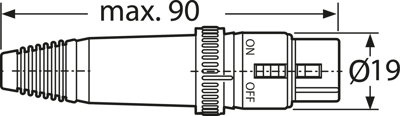

XLR jack, 3 pole, 2.5 mm², AWG 14, metal, NC3FXS
Unit Price (€ / pc.)
13.09 € *
Available: 0 pcs.
Leadtime: On Request **
XLR circular connectors with switch, series FXS, type NEUTRIK NC.
3-pole, with noiseless ON/OFF switch for shorting contacts 2 and 3, for microphones without ON/OFF switch, with rugged metal housing, nickel-plated and collet strain relief for safe cabling; Dielectric strength: 1.5 kVDC. Rated current per contact: 16 A. Cable connection: max. 2.5 mm² (AWG 14). Cable entry: 3.5 to 8.0 mm. Connection type: solder terminals. Contact material: bronze, 0.2 µm gold-plated on 2.0 µm nickel primer. Operating temperatures: - 30 to +80 °C.
Technical attributes (type, housing design): NC3FXS, nickel - plated
Technical specifications
| Version | jack | |
| AWG cross-section | AWG 14 | |
| Enclosure | metal | |
| Cable diameter | 3.5-7 mm | |
| Contact connection | solder connection | |
| Cable cross-section | 2.5 mm² | |
| Assembly | cable assembly | |
| Rated voltage | 50 V | |
| Rated current | 16 A | |
| Pin number | 3 pole | |
| Type of locking | snap lock |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
