NC3FXX-BAG | Neutrik
XLR jack, 3 pole, silver-plated, 2.5 mm², AWG 14, metal, NC3FXX-BAG
Unit Price (€ / pc.)
6.2951 € *
Available: 104 pcs.
Leadtime: 1 Week **
Total Price:
6.30 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2951 €
10 pcs.
5.5573 €
100 pcs.
4.8671 €
250 pcs.
4.6767 €
1000 pcs.
4.3792 €
*incl. VAT plus shipping costs
**Subject to prior sale

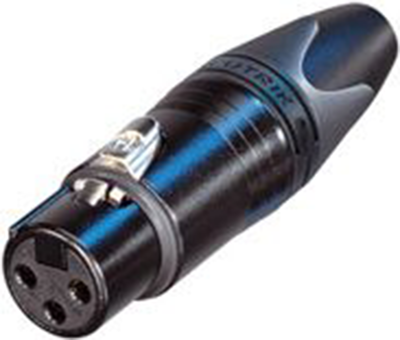

XLR cable connector, NC3FXX-BAG, NEUTRIK
3 pole female cable connector with black metal housing and silver contacts.
Features
- Unique cage design of female contact for low contact resistance and high integrity
- Female connector with improved solid metal latch which is larger and easier to handle
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Rugged zinc diecast shell, longlasting and dependable
- Sleek and ergonomic design - valuable and handy
- Internal thread on shell is well protected against any damage
Technical specifications
| Version | Kupplung | |
| Pin number | 3-polig | |
| Type of locking | Schnappverriegelung | |
| Contact connection | Lötanschluss | |
| Enclosure | Metall | |
| Colour | schwarz | |
| contact surface | versilbert | |
| Assembly | Kabelmontage | |
| Cable cross-section | 2,5 mm² | |
| AWG cross-section | AWG 14 | |
| Cable diameter | 3,5-8 mm | |
| Rated voltage | 50 V | |
| Rated current | 16 A |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
