NC3FXX-WT | Neutrik
XLR jack, 3 pole, silver-plated, 2.5 mm², AWG 14, NC3FXX-WT
Unit Price (€ / pc.)
9.5200 € *
Available: 98 pcs.
Leadtime: 5 Weeks **
Total Price:
9.52 € *
Price list
Quantity
Price per unit*
1 pcs.
9.5200 €
10 pcs.
8.7584 €
50 pcs.
7.9730 €
100 pcs.
7.1757 €
*incl. VAT plus shipping costs
**Subject to prior sale
XLR Connector, NC3FXX-WT, NEUTRIK

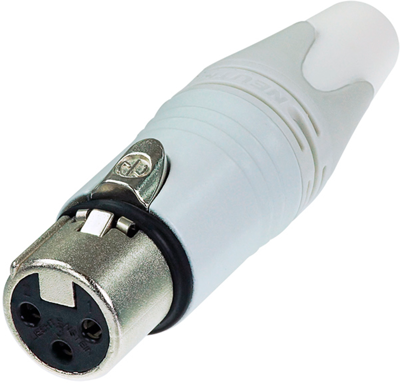

3 pole female cable connector with white painted housing and silver contacts.
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
FEATURES
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well protected against any damage
- Unique cage design of female contact for low contact resistance and high integrity
- Female connector with improved solid metal latch which is larger and easier to handle
Technical Data
- Version: Jack
- Contact connection: Solder connection
- Pin number: 3
- Protection class: IP 40
- Rated current: 16 A
Technical specifications
| Version | jack | |
| AWG cross-section | AWG 14 | |
| Colour | white | |
| Contact connection | solder connection | |
| contact surface | silver-plated | |
| Cable cross-section | 2.5 mm² | |
| Assembly | cable assembly | |
| Rated voltage | 50 V | |
| Rated current | 16 A | |
| Pin number | 3 pole | |
| Type of locking | snap lock |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
