NC3MD-LX-B | Neutrik
XLR panel plug, 3 pole, gold-plated, 2.5 mm², AWG 14, metal, NC3MD-LX-B
Unit Price (€ / pc.)
6.8068 € *
Available: 1 pcs.
Leadtime: 2 Weeks **
Total Price:
6.81 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8068 €
10 pcs.
5.9857 €
100 pcs.
5.2360 €
250 pcs.
5.0456 €
1000 pcs.
4.7243 €
*incl. VAT plus shipping costs
**Subject to prior sale
XLR Connector, NC3MD-LX-B, NEUTRIK

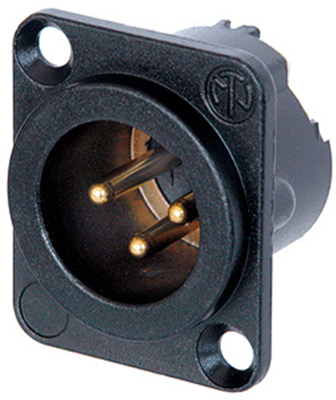

3 pole male receptacle, solder cups, black metal housing, gold contacts.
The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.
FEATURES
- Larger solder contacts for easier termination
- Optional connection to easily join pin1 to chassis ground
- All metal housing offers best overall RF protection and electromagnetic shielding
- D-style housing provides installation compatibility with industry standard D mounting dimensions
Technical Data
- Version: Panel plug
- Contact connection: Solder connection
- Pin number: 3
- Protection class: IP 40
- Rated current: 16 A
Technical specifications
| Ausführung | Einbaustecker | |
| AWG-Leiterquerschnitt | AWG 14 | |
| Farbe | schwarz | |
| Gehäuse | Metall | |
| Kontaktanschluss | Lötanschluss | |
| Kontaktoberfläche | vergoldet | |
| Leiterquerschnitt | 2,5 mm² | |
| Montage | Leiterplattenmontage | |
| Nennspannung | 50 V | |
| Nennstrom | 16 A | |
| Polzahl | 3-polig | |
| Verriegelung | Schnappverriegelung |
Download
Logistics
| Ursprungsland | LI |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
