NC3MD-LX-HA-BAG | Neutrik
XLR panel plug, 3 pole, silver-plated, 0.22-0.34 mm², AWG 24-22, metal, NC3MD-LX-HA-BAG
Unit Price (€ / pc.)
4.3792 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

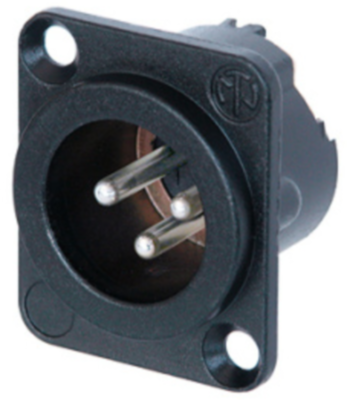

XLR plug, NC3MD-LX-HA-BAG, NEUTRIK
3 pole male receptacle, crimp termination (Standard B-Crimp), black metal housing, silver contacts.
Features
- All metal housing offers best overall RF protection and electromagnetic shielding
- Male connector's retention bar replaces plastic design with all metal version improving pull-out force
- Duplex ground contact for excellent contact integrity between chassis and cable connector
- Larger solder contacts for easier termination
- D-style housing provides installation compatibility with industry standard D mounting dimensions
Technical specifications
| Ausführung | Einbaustecker | |
| AWG-Leiterquerschnitt | AWG 24-22 | |
| Farbe | schwarz | |
| Gehäuse | Metall | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktoberfläche | versilbert | |
| Leiterquerschnitt | 0,22-0,34 mm² | |
| Montage | Leiterplattenmontage | |
| Nennspannung | 50 V | |
| Nennstrom | 6 A | |
| Polzahl | 3-polig | |
| Verriegelung | Schnappverriegelung |
Download
Logistics
| Ursprungsland | LI |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
