NC3MP | Neutrik

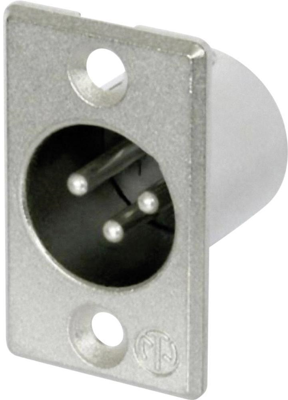

XLR panel plug, 3 pole, silver-plated, metal, NC3MP
Unit Price (€ / pc.)
5.2003 € *
Available: 101 pcs.
Leadtime: 1 Week **
Total Price:
5.20 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2003 €
10 pcs.
4.5934 €
100 pcs.
4.0103 €
250 pcs.
3.8556 €
1000 pcs.
3.6176 €
*incl. VAT plus shipping costs
**Subject to prior sale
XLR panel connectors, type NEUTRIK NC.
3-pole, with snap lock; Male contacts: CuZn39Pb3. Female contacts: CuSn6. Contact finish: galvanic 2.0 µ silver-plating. Contact resistance: min. 5.0 mohm. Cable connection: solder contacts, max. 2.5 mm². Dielectric strength: 1500 VDC. Rated current: 16 A. Insulation resistance: min. 2.0 Gohm. Cover: ZnAl4Cu1, galvanic nickel-plating. Inflammability to UL 94 HB. Operating temperatures: - 30 to +80 °C. type, cover type.
Panel connectors series P, type NC 3MP.
Technical specifications
| Version | Einbaustecker | |
| Colour | schwarz | |
| Enclosure | Metall | |
| Contact connection | Lötanschluss | |
| contact surface | versilbert | |
| Assembly | Leiterplattenmontage | |
| Rated voltage | 50 V | |
| Rated current | 16 A | |
| Pin number | 3-polig | |
| Type of locking | Schnappverriegelung |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
