NC3MRX-B | Neutrik

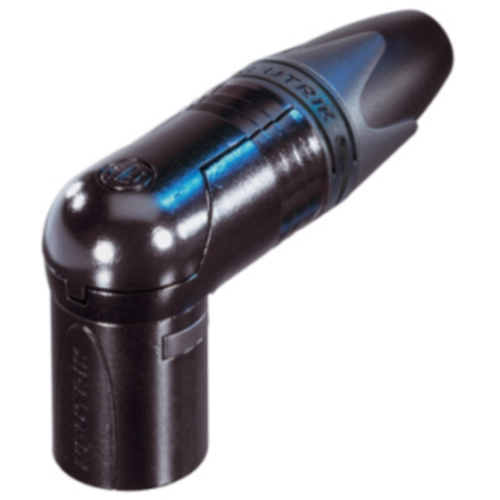

XLR plug, 3 pole, gold-plated, 2.5 mm², AWG 14, metal, NC3MRX-B

Order No.: 80F5124
EAN: 4099889858532
MPN:
NC3MRX-B
Series: RX
NC3MRX-B Neutrik XLR Connectors
Image may differ
Unit Price (€ / pc.)
8.568 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
8.57 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
8.568 €

XX cable connector, NC3MRX-B, NEUTRIK

3 pole right angle male cable connector, black metal housing, gold contacts.

Features

  • Extra slim right-angle connector
  • Sleek and ergonomic design - valuable and hand
  • 7 selectable cable outlet positions
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Technical specifications
Version Stecker
AWG cross-section AWG 14
Colour schwarz
Enclosure Metall
Cable diameter 3,5-8 mm
Contact connection Lötanschluss
contact surface vergoldet
Cable cross-section 2,5 mm²
Assembly Kabelmontage
Rated voltage 50 V
Rated current 16 A
Pin number 3-polig
Type of locking Schnappverriegelung
Logistics
Country of origin LI
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
