NC3MXCC | Neutrik
XLR plug, 3 pole, gold-plated, 2.5 mm², AWG 14, metal, NC3MXCC
Unit Price (€ / pc.)
5.4383 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

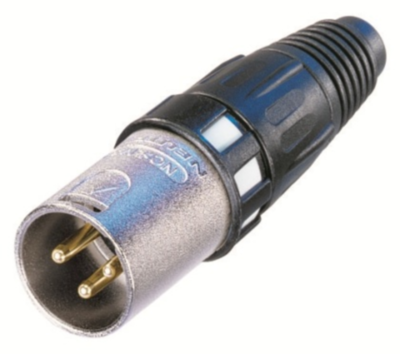

XLR cable connector, NC3MXCC, NEUTRIK
3 pole male cable connector, RF-protected, gold contacts.
Features
- 3 pole cable connector with a circumferential shield contact for best EMI protection
- Rugged zinc diecast shell, long lasting and durable
- Boot with rubber gland gives high protection against bending stresses
- Chuck type strain relief system for secure clamping of cables
Technical specifications
| Version | Stecker | |
| AWG cross-section | AWG 14 | |
| Enclosure | Metall | |
| Cable diameter | 5,4-6,2 mm | |
| Contact connection | Lötanschluss | |
| contact surface | vergoldet | |
| Cable cross-section | 2,5 mm² | |
| Assembly | Kabelmontage | |
| Rated voltage | 50 V | |
| Rated current | 16 A | |
| Pin number | 3-polig | |
| Type of locking | Schnappverriegelung |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
