NC3MXX-BAG | Neutrik
XLR plug, 3 pole, silver-plated, 2.5 mm², AWG 14, metal, NC3MXX-BAG
Unit Price (€ / pc.)
5.4264 € *
Available: 38 pcs.
Leadtime: 1 Week **
Total Price:
5.43 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4264 €
10 pcs.
4.9980 €
50 pcs.
4.5458 €
100 pcs.
4.0936 €
*incl. VAT plus shipping costs
**Subject to prior sale

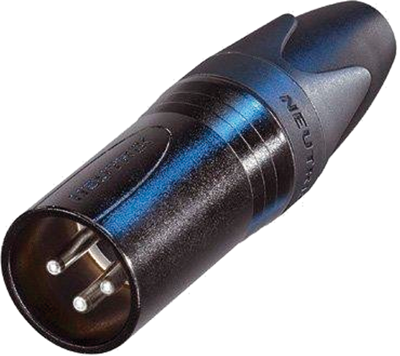

XLR cable connector, NC3MXX-BAG, NEUTRIK
3 pole male cable connector with black metal housing and silver contacts.
Features
- Male connector with improved locking recess without "window", more stringent housing increases durability
- Boot with rubber gland gives high protection against bending stresses
- Sleek and ergonomic design - valuable and handy
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Rugged zinc diecast shell, longlasting and dependable
Technical specifications
| Version | Stecker | |
| Pin number | 3-polig | |
| Type of locking | Schnappverriegelung | |
| Contact connection | Lötanschluss | |
| Enclosure | Metall | |
| Colour | schwarz | |
| contact surface | versilbert | |
| Assembly | Kabelmontage | |
| Cable cross-section | 2,5 mm² | |
| AWG cross-section | AWG 14 | |
| Cable diameter | 3,5-8 mm | |
| Rated voltage | 50 V | |
| Rated current | 16 A |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
