NC4FRX-BAG | Neutrik
XLR jack, 4 pole, silver-plated, 1.5 mm², AWG 16, zinc die casting, NC4FRX-BAG
Unit Price (€ / pc.)
26.2276 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
26.23 € *
Price list
Quantity
Price per unit*
1 pcs.
26.2276 €
5 pcs.
24.1332 €
10 pcs.
22.1935 €
25 pcs.
19.9801 €
*incl. VAT plus shipping costs
**Subject to prior sale

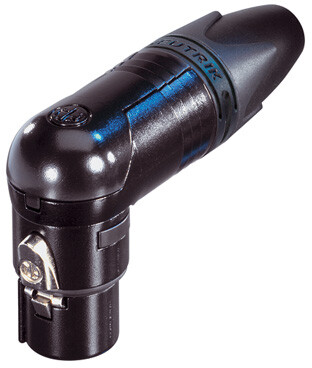

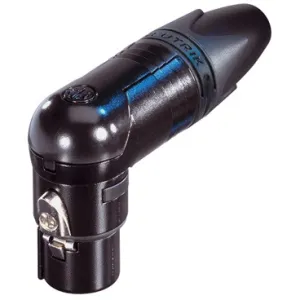

XLR-Cable connector female, NC4FRX-BAG, Neutrik
4 pole right angle female cable connector, black metal housing, silver contacts.
Features
- Extra slim right-angle connector
- Unique cage design of female contact for low contact resistance and high integrity
- Female connector with improved solid metal latch which is larger and easier to handle
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Additional ground spring contacts for better shell ground continuity
Technical specifications
| Version | Kupplung | |
| Pin number | 4-polig | |
| Type of locking | Riegelverriegelung | |
| Contact connection | Lötanschluss | |
| Enclosure | Zinkdruckguss | |
| Colour | schwarz | |
| contact surface | versilbert | |
| Assembly | Kabelmontage | |
| Cable cross-section | 1,5 mm² | |
| AWG cross-section | AWG 16 | |
| Cable diameter | 3,5-8 mm | |
| Rated voltage | 50 V | |
| Rated current | 10 A |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
