NC5FD-L-BAG-1 | Neutrik

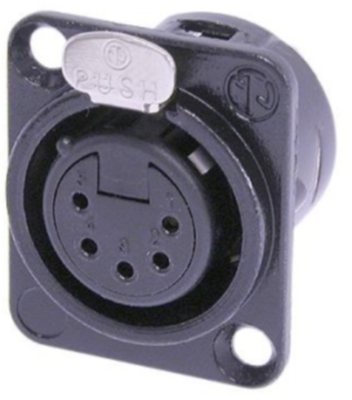

XLR panel socket, 5 pole, silver-plated, 1.0 mm², AWG 18, metal, NC5FD-L-BAG-1
Unit Price (€ / pc.)
15.3510 € *
Available: 18 pcs.
Leadtime: 5 Weeks **
Total Price:
15.35 € *
Price list
Quantity
Price per unit*
1 pcs.
15.3510 €
10 pcs.
14.1253 €
50 pcs.
12.8520 €
100 pcs.
11.5668 €
*incl. VAT plus shipping costs
**Subject to prior sale
XLR Connector, NC5FD-L-BAG-1, NEUTRIK
5 pole female receptacle, solder cups, black metal housing, silver contacts.
Universal D-size metal body XLR panel mount series.
FEATURES
- Robust "D" metal shell
- Solder cups on 3 - 7 pole version
- Standardized D sized 24 mm panel cutout
Technical Data
- Version: Panel jack
- Contact connection: Solder connection
- Pin number: 5
- Protection class: IP 40
- Rated current: 7.5 A
Technical specifications
| Version | Einbaubuchse | |
| AWG cross-section | AWG 18 | |
| Colour | schwarz | |
| Enclosure | Metall | |
| Contact connection | Lötanschluss | |
| contact surface | versilbert | |
| Cable cross-section | 1,0 mm² | |
| Assembly | Leiterplattenmontage | |
| Rated voltage | 50 V | |
| Rated current | 7.5 A | |
| Pin number | 5-polig | |
| Type of locking | Schnappverriegelung |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
