NC5FX | Neutrik
XLR jack, 5 pole, silver-plated, 1.0 mm², AWG 18, metal, NC5FX
Unit Price (€ / pc.)
13.6136 € *
Available: 1 pcs.
Leadtime: 1 Week **
Total Price:
13.61 € *
Price list
Quantity
Price per unit*
1 pcs.
13.6136 €
10 pcs.
12.5188 €
50 pcs.
11.4002 €
100 pcs.
10.2578 €
*incl. VAT plus shipping costs
**Subject to prior sale

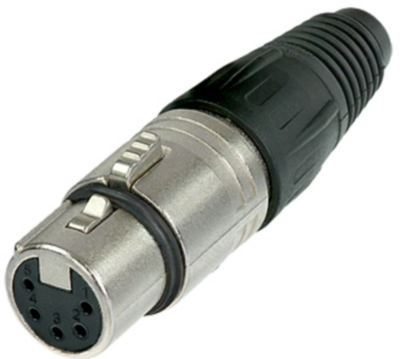

XLR Connector, NC5FX, NEUTRIK
5 pole female cable connector with Nickel housing and silver contacts.
The "industry standard" XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.
FEATURES
- Rugged zinc diecast shell, long lasting and durable
- Chuck type strain relief system for secure clamping of cables
- Boot with rubber gland gives high protection against bending stresses
- UL recognized components
Technical Data
- Version: Jack
- Contact connection: Solder connection
- Pin number: 5
- Protection class: IP 40
- Rated current: 7.5 A
Technical specifications
| Ausführung | Kupplung | |
| AWG-Leiterquerschnitt | AWG 18 | |
| Gehäuse | Metall | |
| Kabeldurchmesser | 3,5-8 mm | |
| Kontaktanschluss | Lötanschluss | |
| Kontaktoberfläche | versilbert | |
| Leiterquerschnitt | 1,0 mm² | |
| Montage | Kabelmontage | |
| Nennspannung | 50 V | |
| Nennstrom | 7.5 A | |
| Polzahl | 5-polig | |
| Verriegelung | Schnappverriegelung |
Download
Logistics
| Ursprungsland | LI |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
