NC5FXX-B | Neutrik
XLR jack, 5 pole, gold-plated, 1.0 mm², AWG 18, metal, NC5FXX-B
Unit Price (€ / pc.)
12.9234 € *
Available: 67 pcs.
Leadtime: 5 Weeks **
Total Price:
12.92 € *
Price list
Quantity
Price per unit*
1 pcs.
12.9234 €
10 pcs.
11.8881 €
50 pcs.
10.8171 €
100 pcs.
9.7342 €
*incl. VAT plus shipping costs
**Subject to prior sale

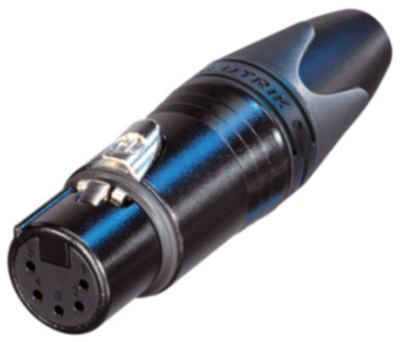

XLR cable connector, NC5FXX-B, NEUTRIK
5 pole female cable connector with black metal housing and gold contacts.
Features
- Unique cage design of female contact for low contact resistance and high integrity
- Female connector with improved solid metal latch which is larger and easier to handle
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Sleek and ergonomic design - valuable and handy
- Internal thread on shell is well protected against any damage
Technical specifications
| Version | Kupplung | |
| Pin number | 5-polig | |
| Type of locking | Schnappverriegelung | |
| Contact connection | Lötanschluss | |
| Enclosure | Metall | |
| Colour | schwarz | |
| contact surface | vergoldet | |
| Assembly | Kabelmontage | |
| Cable cross-section | 1,0 mm² | |
| AWG cross-section | AWG 18 | |
| Cable diameter | 3,5-8 mm | |
| Rated voltage | 50 V | |
| Rated current | 7.5 A |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
