NC5MX-BAG | Neutrik
XLR plug, 5 pole, silver-plated, 1.0 mm², AWG 18, metal, NC5MX-BAG
Unit Price (€ / pc.)
8.0563 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

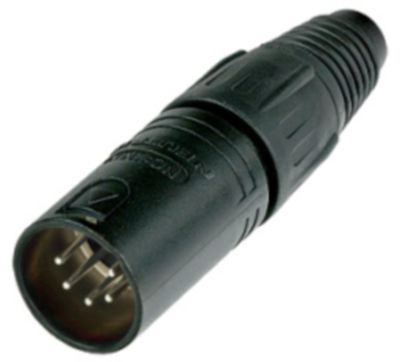

RX cable plug, NC5MX-BAG, NEUTRIK
5 pole male cable connector with black metal housing and silver contacts. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.
Features
- Rugged zinc diecast shell, long lasting and durable
- Boot with rubber gland gives high protection against bending stresses
Technical specifications
| Version | plug | |
| AWG cross-section | AWG 18 | |
| Colour | black | |
| Enclosure | metal | |
| Cable diameter | 3.5-8 mm | |
| Contact connection | solder connection | |
| contact surface | silver-plated | |
| Cable cross-section | 1.0 mm² | |
| Assembly | cable assembly | |
| Rated voltage | 50 V | |
| Rated current | 7.5 A | |
| Pin number | 5 pole | |
| Type of locking | snap lock |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
