NC5MXX-BAG | Neutrik
XLR plug, 5 pole, silver-plated, 1.0 mm², AWG 18, metal, NC5MXX-BAG
Unit Price (€ / pc.)
9.4962 € *
Available: 27 pcs.
Leadtime: 1 Week **
Total Price:
9.50 € *
Price list
Quantity
Price per unit*
1 pcs.
9.4962 €
10 pcs.
8.7346 €
50 pcs.
7.9492 €
100 pcs.
7.1519 €
*incl. VAT plus shipping costs
**Subject to prior sale
XLR Connector, NC5MXX-BAG, NEUTRIK

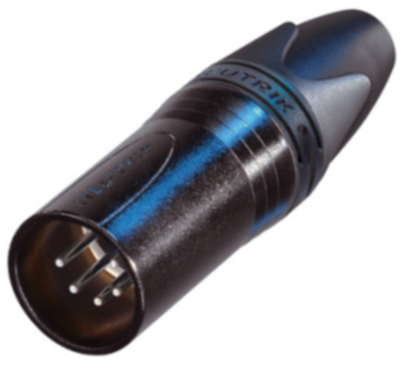

5 pole male cable connector with black metal housing and silver contacts.
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
FEATURES
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well protected against any damage
- Boot with polyurethane gland gives high protection to cable bending stresses
- Male connector with improved locking recess without "window", more stringent housing increases durability
Technical Data
- Version: Plug
- Contact connection: Solder connection
- Pin number: 5
- Protection class: IP 40
- Rated current: 7.5 A
Technical specifications
| Version | plug | |
| AWG cross-section | AWG 18 | |
| Colour | black | |
| Enclosure | metal | |
| Cable diameter | 3.5-8 mm | |
| Contact connection | solder connection | |
| contact surface | silver-plated | |
| Cable cross-section | 1.0 mm² | |
| Assembly | cable assembly | |
| Rated voltage | 50 V | |
| Rated current | 7.5 A | |
| Pin number | 5 pole | |
| Type of locking | snap lock |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
