NC6FD-L-1 | Neutrik
XLR panel socket, 6 pole, silver-plated, 1.0 mm², AWG 18, metal, NC6FD-L-1
Unit Price (€ / pc.)
19.2185 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
19.22 € *
Price list
Quantity
Price per unit*
1 pcs.
19.2185 €
10 pcs.
17.6834 €
50 pcs.
16.2673 €
100 pcs.
14.8036 €
*incl. VAT plus shipping costs
**Subject to prior sale

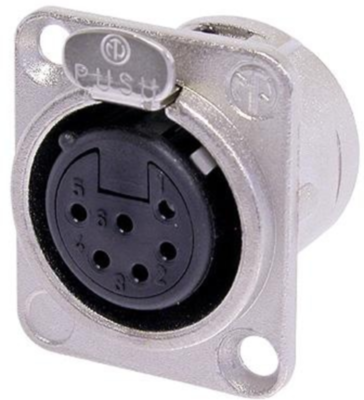

XLR receptacle, NC6FD-L-1, NEUTRIK
6 pole female receptacle, solder cups, Nickel housing, silver contacts.
Features
- Robust "D" metal shell
- Standardized D sized 24 mm panel cutout
Technical specifications
| Version | panel socket | |
| AWG cross-section | AWG 18 | |
| Enclosure | metal | |
| Contact connection | solder connection | |
| contact surface | silver-plated | |
| Cable cross-section | 1.0 mm² | |
| Assembly | PCB mounting | |
| Rated voltage | 50 V | |
| Rated current | 7.5 A | |
| Pin number | 6 pole | |
| Type of locking | snap lock |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
