NC6FRX-B | Neutrik

XLR jack, 6 pole, gold-plated, 1.0 mm², AWG 18, zinc die casting, NC6FRX-B

Order No.: 39F1214
EAN: 7613187000423
MPN:
NC6FRX-B
Series: RX
NC6FRX-B Neutrik XLR Connectors
Image may differ
Unit Price (€ / pc.)
43.9467 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
43.95 € *
Price list
Quantity
Price per unit*
1 pcs.
43.9467 €
5 pcs.
40.8646 €
10 pcs.
37.6040 €
25 pcs.
34.2125 €
*incl. VAT plus shipping costs
**Subject to prior sale

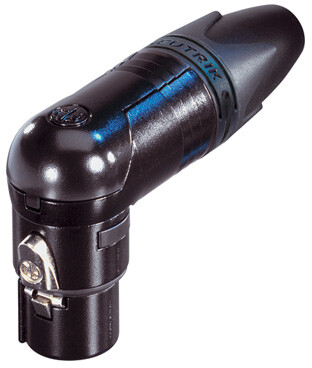

Angled cable socket, NC6FRX-B, Neutrik

6 pole right angle female cable connector, black metal housing, gold contacts.

Features

  • Extra slim right-angle connector
  • Unique cage design of female contact for low contact resistance and high integrity
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Additional ground spring contacts for better shell ground continuity
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Sleek and ergonomic design - valuable and handy
Technical specifications
Version Kupplung
Pin number 6-polig
Type of locking Riegelverriegelung
Contact connection Lötanschluss
Enclosure Zinkdruckguss
Colour schwarz
contact surface vergoldet
Assembly Kabelmontage
Cable cross-section 1,0 mm²
AWG cross-section AWG 18
Cable diameter 3,5-8 mm
Rated voltage 50 V
Rated current 7.5 A
Logistics
Country of origin CH
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
