NC6FXX-B | Neutrik

XLR jack, 6 pole, gold-plated, 1.0 mm², AWG 18, zinc die casting, NC6FXX-B

Order No.: 39F1238
EAN: 7613187000089
MPN:
NC6FXX-B
Series: XX
NC6FXX-B Neutrik XLR Connectors
Image may differ
Unit Price (€ / pc.)
29.6310 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
29.63 € *
Price list
Quantity
Price per unit*
1 pcs.
29.6310 €
5 pcs.
27.5604 €
10 pcs.
25.3589 €
25 pcs.
23.0741 €
*incl. VAT plus shipping costs
**Subject to prior sale

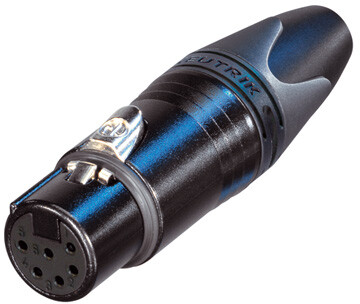

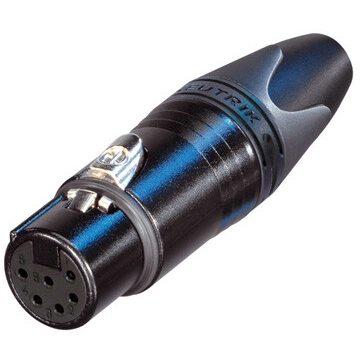

Female cable connector, NC6FXX-B, Neutrik

6 pole female cable connector with black metal housing and gold contacts.

Features

  • Unique cage design of female contact for low contact resistance and high integrity
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Additional ground spring contacts for better shell ground continuity
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Sleek and ergonomic design - valuable and handy
  • Internal thread on shell is well protected against any damage
Technical specifications
Ausführung Kupplung
AWG-Leiterquerschnitt AWG 18
Farbe schwarz
Gehäuse Zinkdruckguss
Kabeldurchmesser 3,5-8 mm
Kontaktanschluss Lötanschluss
Kontaktoberfläche vergoldet
Leiterquerschnitt 1,0 mm²
Montage Kabelmontage
Nennspannung 50 V
Nennstrom 7.5 A
Polzahl 6-polig
Verriegelung Riegelverriegelung
Logistics
Ursprungsland CH
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
