NC7MRX | Neutrik
XLR plug, 7 pole, silver-plated, 1 mm², AWG 18, metal, NC7MRX
Unit Price (€ / pc.)
35.4501 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
35.45 € *
Price list
Quantity
Price per unit*
1 pcs.
35.4501 €
10 pcs.
32.9630 €
25 pcs.
30.3331 €
50 pcs.
27.9055 €
*incl. VAT plus shipping costs
**Subject to prior sale

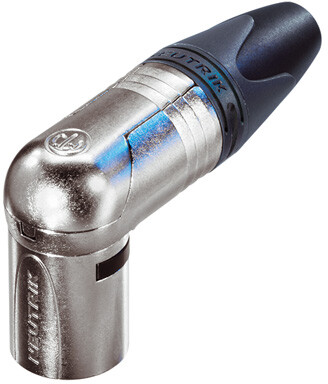

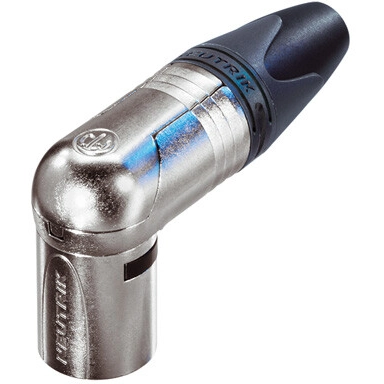

Male cable connector, NC7MRX, Neutrik
7 pole right angle male cable connector, nickel housing, silver contacts.
Features
- Extra slim right-angle connector
- Male connector with improved locking recess without "window", more stringent housing increases durability
- Boot with polyurethane gland gives high protection to cable bending stresses
- Sleek and ergonomic design - valuable and handy
- 7 selectable cable outlet positions
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Technical specifications
| Version | Stecker | |
| Pin number | 7-polig | |
| Type of locking | Riegelverriegelung | |
| Contact connection | Lötanschluss | |
| Enclosure | Metall | |
| Colour | natur | |
| contact surface | versilbert | |
| Assembly | Kabelmontage | |
| Cable cross-section | 1 mm² | |
| AWG cross-section | AWG 18 | |
| Cable diameter | 3,5-8 mm | |
| Rated voltage | 50 V | |
| Rated current | 5 A |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
