NC7MXX | Neutrik
XLR plug, 7 pole, silver-plated, 1 mm², AWG 18, metal, NC7MXX
Unit Price (€ / pc.)
22.8480 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
22.85 € *
Price list
Quantity
Price per unit*
1 pcs.
22.8480 €
10 pcs.
21.2534 €
25 pcs.
19.5517 €
50 pcs.
17.9809 €
*incl. VAT plus shipping costs
**Subject to prior sale

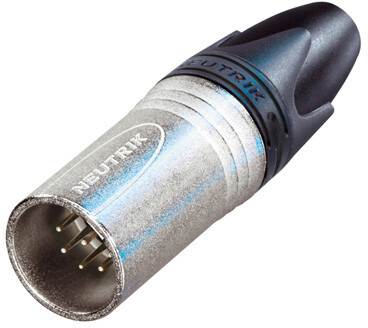

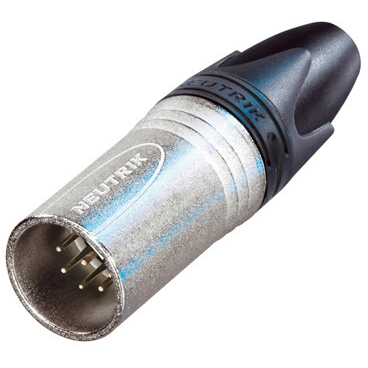

Male cable connector, NC7MXX, Neutrik
7 pole male cable connector, nickel housing and silver contacts.
Features
- Rugged zinc diecast shell, longlasting and dependable
- Male connector with improved locking recess without "window", more stringent housing increases durability
- Boot with polyurethane gland gives high protection to cable bending stresses
- Sleek and ergonomic design - valuable and handy
- Internal thread on shell is well protected against any damage
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Technical specifications
| Ausführung | Stecker | |
| AWG-Leiterquerschnitt | AWG 18 | |
| Farbe | natur | |
| Gehäuse | Metall | |
| Kabeldurchmesser | 3,5-8 mm | |
| Kontaktanschluss | Lötanschluss | |
| Kontaktoberfläche | versilbert | |
| Leiterquerschnitt | 1 mm² | |
| Montage | Kabelmontage | |
| Nennspannung | 50 V | |
| Nennstrom | 5 A | |
| Polzahl | 7-polig | |
| Verriegelung | Riegelverriegelung |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
