NCJ6FI-H | Neutrik

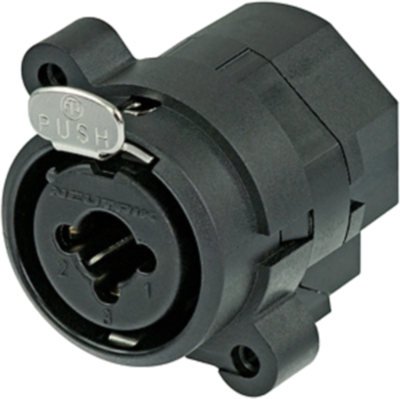

XLR jack combination, 3 pole, gold-plated, metal, NCJ6FI-H
Unit Price (€ / pc.)
2.8798 € *
Available: 0 pcs.
Leadtime: On Request **
XLR Connector, NCJ6FI-H, NEUTRIK
3 pole XLR female receptacle with 1/4" stereo jack without switching contact, horizontal PCB mount.
FEATURES
- Combined XLR receptacle and 1/4" phone jack
- Saves rack space by combining 2 connectors in one housing
- Very low conductor capacitance, therefore suitable for digital audio
- Balanced or line inputs in one XLR shell
Technical Data
- Version: Panel jack
- Contact connection: Solder connection
- Pin number: 3
- Rated current: 7.5 A
Technical specifications
| Ausführung | Einbaubuchse | |
| Farbe | schwarz | |
| Gehäuse | Metall | |
| Kontaktanschluss | Lötanschluss | |
| Kontaktoberfläche | vergoldet | |
| Montage | Leiterplattenmontage | |
| Nennspannung | 50 V | |
| Nennstrom | 7.5 A | |
| Polzahl | 3-polig | |
| Verriegelung | Schnappverriegelung |
Download
Logistics
| Ursprungsland | LI |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
