PBLS6021D,115 | NEXPERIA
Bipolar junction transistor, NPN/PNP, -1.5 A, -60 V, SMD, SOT-457, PBLS6021D,115
Unit Price (€ / pc.)
0.2773 € *
Available: 0 pcs.
Leadtime: On Request **
PNP loadswitch, PBLS6021D,115, NEXPERIA

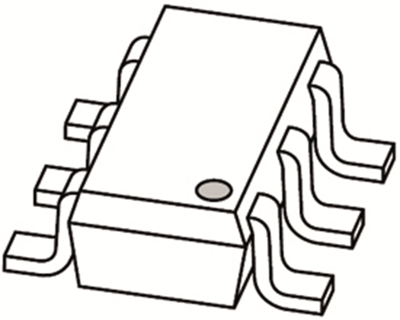

PNP low VCEsat breakthrough in small signal (BISS) transistor and NPN ResistorEquipped Transistor (RET) in a SOT457 (SC-74) small surface-mounted device (SMD) plastic package.
Features
- Low threshold voltage
- Space-saving solution
- Reduction of component count
Applications
- Supply line switches
- Battery charger switches
- High-side switches for LEDs, drivers and backlights
- Portable equipment
Technical specifications
| Ausführung | NPN/PNP | |
| Gehäuse | SOT-457 | |
| max. Temperatur | 150 °C | |
| max.Spannung zwischen Kollektor und Basis Vcbo | -60 V | |
| max.Spannung zwischen Kollektor und Emitter Vceo | -60 V | |
| min. Temperatur | -65 °C | |
| Montage | SMD | |
| Sättigungsspannung | -150 mV | |
| Transitfrequenz fTmin | 150 MHz | |
| Verlustleistung VA (AC) | 0.6 W | |
| Kollektorstrom | -1.5 A | |
| Min Gleichstromverstärkung | 30 mA |
Download
Logistics
| Zolltarifnummer | 85412900 |
| Originalverpackung | Rolle mit 3.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 6/8/11 |
| SVHC frei | Yes |
