PBLS6024D,115 | NEXPERIA
Bipolar junction transistor, NPN/PNP, -1.5 A, -60 V, SMD, SOT-457, PBLS6024D,115
Unit Price (€ / pc.)
0.2773 € *
Available: 0 pcs.
Leadtime: On Request **
PNP loadswitch, PBLS6024D,115, NEXPERIA

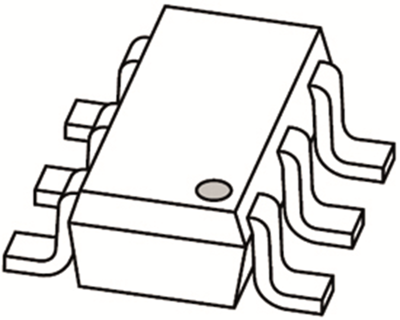

PNP low VCEsat transistor and NPN Resistor- Equipped Transistor (RET) in a SOT457 (SC-74) small surface-mounted device (SMD) plastic package.
Features
- Low threshold voltage
- Space-saving solution
- Reduction of component count
Applications
- Supply line switches
- Battery charger switches
- High-side switches for LEDs, drivers and backlights
- Portable equipment
Technical specifications
| Version | NPN/PNP | |
| Enclosure | SOT-457 | |
| max. operating temperature | 150 °C | |
| max.voltage between collector and base Vcbo | -60 V | |
| max.voltage between collector and emitter Vceo | -60 V | |
| min. operating temperature | -65 °C | |
| Assembly | SMD | |
| Saturation voltage | -150 mV | |
| Transit frequency fTmin | 150 MHz | |
| Power dissipation | 0.6 W | |
| Collector current | -1.5 A | |
| Min DC gain | 60 mA |
Download
Logistics
| Customs tariff number | 85412900 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
