PBSS2515YPN,115 | NEXPERIA
Bipolar junction transistor, NPN/PNP, 0.5 A, 15 V, SMD, SOT-363, PBSS2515YPN,115
Unit Price (€ / pc.)
0.1821 € *
Available: 0 pcs.
Leadtime: On Request **
NPN/PNP transistor, PBSS2515YPN,115, NEXPERIA

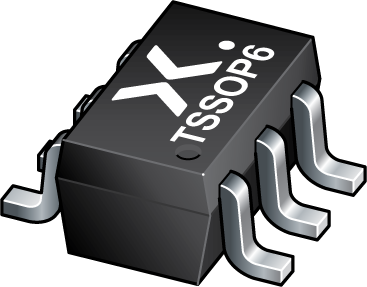

NPN/PNP low VCEsat transistor pair in a SOT363 (SC-88) very small surface-mounted device (SMD) plastic package.
Features
- Low collector-emitter saturation voltage
- High current capability
- Reduces required PCB area
Applications
- General purpose switching and muting
- Low frequency driver circuits
- LCD backlighting
- Supply line switching circuits
- Battery driven equipment (mobile phones, video cameras and hand-held devices)
Technical specifications
| Ausführung | NPN/PNP | |
| Gehäuse | SOT-363 | |
| max. Temperatur | 150 °C | |
| max.Spannung zwischen Kollektor und Basis Vcbo | 15 V | |
| max.Spannung zwischen Kollektor und Emitter Vceo | 15 V | |
| min. Temperatur | -65 °C | |
| Montage | SMD | |
| Sättigungsspannung | 250 mV | |
| Transitfrequenz fTmin | 420 MHz | |
| Verlustleistung VA (AC) | 0.2 W | |
| Kollektorstrom | 0.5 A | |
| Min Gleichstromverstärkung | 200 mA |
Download
Logistics
| Zolltarifnummer | 85412900 |
| Originalverpackung | Rolle mit 3.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 6/8/11 |
| SVHC frei | Yes |
