PUMB10,115 | NEXPERIA
Bipolar junction transistor, PNP, -100 mA, -50 V, SMD, SOT-363, PUMB10,115
Unit Price (€ / pc.)
0.0797 € *
Available: 0 pcs.
Leadtime: On Request **
PNP resistor, PUMB10,115, NEXPERIA

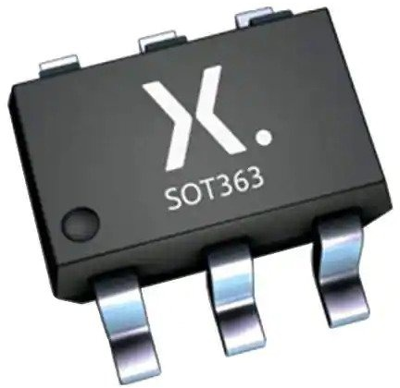

PNP/PNP double resistor-equipped transistor (RET) in a very small SOT363 (SC-88) surface-mounted device (SMD) plastic package.
Features
- Built-in bias resistors
- Simplified circuit design
- Reduces component count
- Reduces pick and place costs
- AEC-Q101 qualified
Applications
- Low current peripheral driver
- Controlling IC inputs
Technical specifications
| Ausführung | PNP | |
| Gehäuse | SOT-363 | |
| max. Temperatur | 150 °C | |
| max.Spannung zwischen Kollektor und Basis Vcbo | -50 V | |
| max.Spannung zwischen Kollektor und Emitter Vceo | -50 V | |
| min. Temperatur | -65 °C | |
| Montage | SMD | |
| Sättigungsspannung | -100 mV | |
| Transitfrequenz fTmin | 180 MHz | |
| Verlustleistung VA (AC) | 0.3 W | |
| Kollektorstrom | -100 mA | |
| Min Gleichstromverstärkung | 100 mA |
Download
Logistics
| Zolltarifnummer | 85412900 |
| Originalverpackung | Rolle mit 3.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 6/8/11 |
| SVHC frei | Yes |
