NACE101M25V6.3X8TR | NIC

Electrolytic capacitor, 100 µF, 25 V (DC), -20/+20 %, SMD, Ø 6.3 mm, NACE101M25V6.3X8TR

Order No.: 10D3304
EAN: 4099891369293
MPN:
NACE101M25V6.3X8TR
Series: NACE
NIC
NACE101M25V6.3X8TR NIC Electrolytic Capacitors

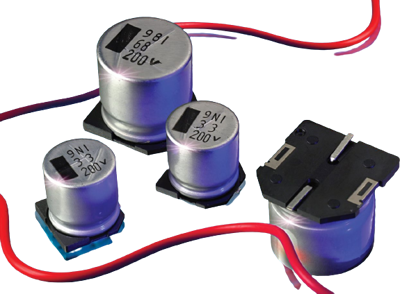

Image may differ
Unit Price (€ / pc.)
0.1952 € *
Available: 500 pcs.
Leadtime: On Request **
Total Price:
0.20 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1952 €
10 pcs.
0.1547 €
100 pcs.
0.1392 €
250 pcs.
0.1166 €
500 pcs.
0.1012 €
*incl. VAT plus shipping costs
**Subject to prior sale

Aluminum electrolyic capacitor, NACE101M25V6.3X8TR, NIC

The NACE101M25V6.3X8TR is a aluminium general purpose surface mount aluminum electrolyic capacitors designed for automatic mounting and reflow soldering.

Features

  • Cylindrical V-Chip construction
  • Low cost, general purpose
  • New expanded CV range
  • Anti-solvent
Technical specifications
Connection solder connection
Version polar
Design SMD
diameter 6.3 mm
ESR (Equivalent Series Resistance) 2.32 Ω
Capacity 100 µF
Length 8 mm
max. operating temperature 85 °C
min. operating temperature -40 °C
Rated voltage (DC) 25 V
Ripple current 130 mA
Tolerance -20/+20 %
Logistics
Country of origin JP
Customs tariff number 85322200
Original Packaging Reel with 500 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
