NACE2R2M50V4X5.5TR | NIC

Electrolytic capacitor, 2.2 µF, 50 V (DC), -20/+20 %, SMD, Ø 4 mm, NACE2R2M50V4X5.5TR

Order No.: 10D3311
EAN: 4099891369361
MPN:
NACE2R2M50V4X5.5TR
Series: NACE
NIC
NACE2R2M50V4X5.5TR NIC Electrolytic Capacitors

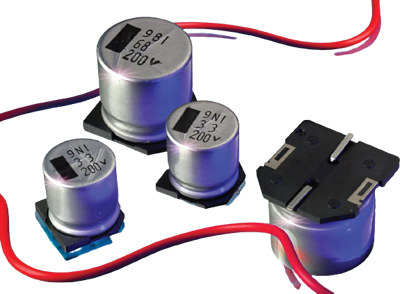

Image may differ
Unit Price (€ / pc.)
0.1107 € *
Available: 1,500 pcs.
Leadtime: On Request **
Total Price:
0.11 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1107 €
10 pcs.
0.0881 €
100 pcs.
0.0797 €
500 pcs.
0.0666 €
1500 pcs.
0.0571 €
*incl. VAT plus shipping costs
**Subject to prior sale

Aluminum electrolyic capacitor, NACE2R2M50V4X5.5TR, NIC

The NACE2R2M50V4X5.5TR is a aluminium general purpose surface mount aluminum electrolyic capacitors designed for automatic mounting and reflow soldering.

Features

  • Cylindrical V-Chip construction
  • Low cost, general purpose
  • New expanded CV range
  • Anti-solvent
Technical specifications
Connection solder connection
Version polar
Design SMD
diameter 4 mm
ESR (Equivalent Series Resistance) 75.4 Ω
Capacity 2.2 µF
Length 5.5 mm
max. operating temperature 85 °C
min. operating temperature -40 °C
Rated voltage (DC) 50 V
Ripple current 15 mA
Tolerance -20/+20 %
Logistics
Country of origin JP
Customs tariff number 85322200
Original Packaging Reel with 1,500 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
