UCD1V330MCL1GS | NICHICON
Electrolytic capacitor, 33 µF, 35 V (DC), ±20 %, SMD, Ø 6 mm, UCD1V330MCL1GS
Unit Price (€ / pc.)
0.1725 € *
Available: 0 pcs.
Leadtime: On Request **

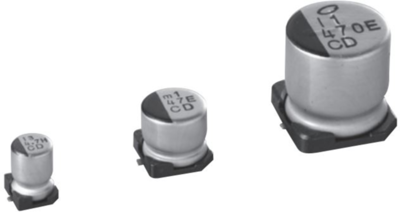

Aluminum electrolytic capacitor, UCD1V330MCL1GS, NICHICON
Chip Type
Features
- Chip type, low impedance temperature range up to +105 °C
- Designed for surface mounting on high density PC board
- Applicable to automatic mounting machine fed with carrier tape
- Compliant to the RoHS directive
Technical specifications
| Ausführung | Polar | |
| Bauform | SMD | |
| Durchmesser | 6 mm | |
| Kapazität | 33 µF | |
| Länge | 5 mm | |
| max. Temperatur | 105 °C | |
| min. Temperatur | -55 °C | |
| Nennspannung (DC) | 35 V | |
| Rippelstrom | 120 mA | |
| Toleranz | ±20 % |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 85322200 |
| Originalverpackung | Rolle mit 1.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
