UPW2A470MPD1TD | NICHICON
Electrolytic capacitor, 47 µF, 100 V (DC), ±20 %, radial, pitch 6 mm, Ø 10 mm, UPW2A470MPD1TD
Unit Price (€ / pc.)
0.4522 € *
Available: 470 pcs.
Leadtime: On Request **
Total Price:
4.52 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4522 €
50 pcs.
0.3332 €
250 pcs.
0.2642 €
1000 pcs.
0.2309 €
2000 pcs.
0.2047 €
*incl. VAT plus shipping costs
**Subject to prior sale

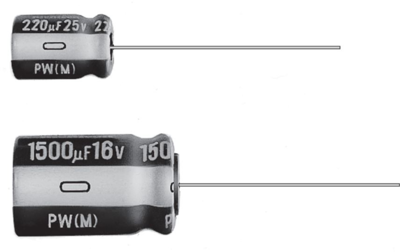

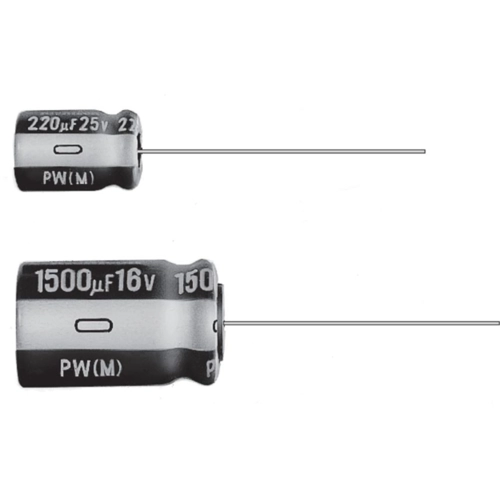

Aluminum electrolytic capacitor, UPW2A470MPD1TD, NICHICON
Features
- Smaller case size and lower impedance than UPM
- Low impedance and high reliability withstanding 2000 hours to 8000 hours
- Capacitance ranges available based on the numerical values in E12 series under JIS
- Compliant to the RoHS directive
Technical specifications
| Ausführung | Polar | |
| Bauform | radial | |
| Durchmesser | 10 mm | |
| Kapazität | 47 µF | |
| Länge | 16 mm | |
| max. Temperatur | 105 °C | |
| min. Temperatur | -55 °C | |
| Nennspannung (DC) | 100 V | |
| Rastermaß | 6 mm | |
| Rippelstrom | 126 mA | |
| Toleranz | ±20 % |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 85322200 |
| Originalverpackung | Ammopack mit 500 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
