M-1303-502-5K OHM | Nidec Copal

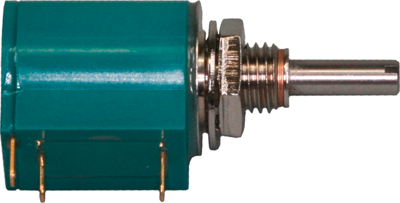

Wire-wound potentiometer, 3 turns, 5 kΩ, 0.75 W, linear, solder lug, M-1303-502-5K OHM
Unit Price (€ / pc.)
26.9654 € *
Available: 41 pcs.
Leadtime: On Request **
Total Price:
26.97 € *
Price list
Quantity
Price per unit*
1 pcs.
26.9654 €
10 pcs.
23.7405 €
50 pcs.
22.1102 €
150 pcs.
21.1463 €
500 pcs.
20.0753 €
*incl. VAT plus shipping costs
**Subject to prior sale
Wire-wound multi-turn potentiometers, 3-turn, type Copal M-1303.
Rated load: 0.75 W. Tolerance: ±5.0 %. Electrical/mechanical turns: 1080°. Operating temperatures: –40 to +85 °C. With 3.0 mm shaft.
Type: 5K0

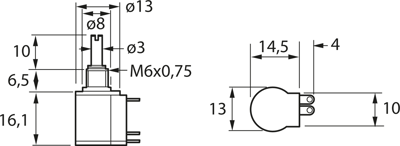

Technical specifications
| ohmic resistance | 5 kΩ | |
| Connection | solder lug | |
| Version | wire-wound potentiometer | |
| Width | 16.1 mm | |
| Rotary range, electrical | 1080 ° | |
| Mechanic rotary range | 1080 ° | |
| axle diameter | 3 mm | |
| Length | 13 mm | |
| Power | 0.75 W | |
| max. number of revolutions | 3 | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | angled | |
| Track Taper | linear |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85333100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
