S-2031A (P) | Nidec Copal

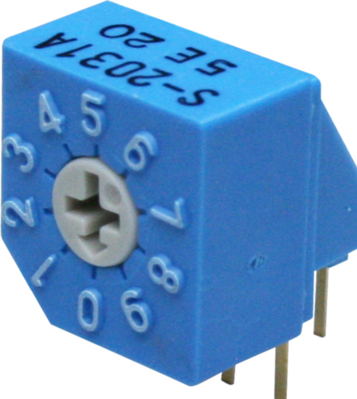

Encoding rotary switch, 10 pole, BCD, angled, 100 mA/5 VDC, S-2031A (P)
Unit Price (€ / pc.)
3.4867 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.49 € *
Price list
Quantity
Price per unit*
25 pcs.
3.4867 €
50 pcs.
3.0702 €
100 pcs.
2.6894 €
250 pcs.
2.5823 €
1000 pcs.
2.4157 €
*incl. VAT plus shipping costs
**Subject to prior sale
Rotary coding switches with cross recess adjustment, type Copal S-2000A.
10 switch positions for BCD code, for PCB connection; Contact and terminal material: gold-plated copper alloy. Contact rating: dynamic 100 mA/5.0 VDC, static 100 mA/50 VDC, minimum 1.0 µA/20. Operating temperatures: –40 to +85 °C.
Side adjustment.
Type: S-2031A, complementary BCD code
Technical specifications
| Anschluss | Leiterplattenstift | |
| Ausführung | Kodier-Drehschalter | |
| Bauform | abgewinkelt | |
| Betätigung | seitlich | |
| Kodierung | BCD | |
| Kontaktoberfläche | vergoldet | |
| Polzahl | 10-polig | |
| Rastermaß | 2.54 mm | |
| Schaltleistung | 100 mA/5 VDC |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
