SD-1010W | Nidec Copal
Encoding rotary switches, 16 pole, BCD-Real, straight, 100 mA/5 VDC, SD-1010W
Unit Price (€ / pc.)
1.8564 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.86 € *
Price list
Quantity
Price per unit*
50 pcs.
1.8564 €
100 pcs.
1.7017 €
*incl. VAT plus shipping costs
**Subject to prior sale

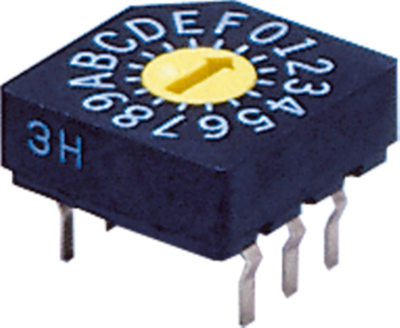

Rotary code switch, SD-1010W, Nidec Copal
Features
- Leadfree soldering
- Fine click with metallic spring
- Low profile of 3.9 mm makes perfect for high density board mounting applications
- Gold plated contact provides excellent reliability
- Terminal pin arrangement 33
Technical specifications
| Connection | PCB pin | |
| Version | encoding rotary switches | |
| Design | straight | |
| Actuation | on top | |
| Coding | BCD-Real | |
| contact surface | gold-plated | |
| Pin number | 16 pole | |
| Grid | 2.54 mm | |
| Breaking capacity | 100 mA/5 VDC |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85365080 |
| Original Packaging | Bulk with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
