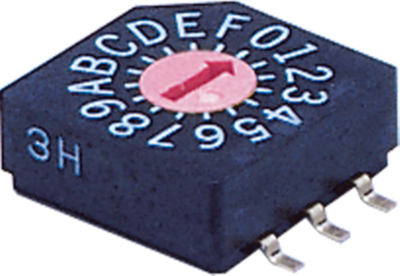

SD-1030WB | Nidec Copal
Encoding rotary switch, 16 pole, BCD, straight, 100 mA/5 VDC, SD-1030WB
Unit Price (€ / pc.)
1.8564 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.86 € *
Price list
Quantity
Price per unit*
50 pcs.
1.8564 €
100 pcs.
1.7017 €
*incl. VAT plus shipping costs
**Subject to prior sale
Rotary code switch, SD-1030WB, Nidec Copal
Features
- Leadfree soldering
- Fine click with metallic spring
- Low profile of 3.9 mm makes perfect for high density board mounting applications
- Gold plated contact provides excellent reliability
- Terminal pin arrangement 33
Technical specifications
| Anschluss | Gull-wing | |
| Ausführung | Kodier-Drehschalter | |
| Bauform | gerade | |
| Betätigung | oben | |
| Kodierung | BCD | |
| Kontaktoberfläche | vergoldet | |
| Polzahl | 16-polig | |
| Rastermaß | 2.54 mm | |
| Schaltleistung | 100 mA/5 VDC |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85365080 |
| Originalverpackung | Bulk mit 50 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
