CT-9EW-101-100 OHM | Nidec Copal
Cermet trimmer potentiometer, 15 turns, 100 Ω, 0.5 W, THT, on top, CT-9EW-101-100 OHM
Unit Price (€ / pc.)
1.0353 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.04 € *
Price list
Quantity
Price per unit*
10 pcs.
1.0353 €
50 pcs.
0.9163 €
250 pcs.
0.7854 €
1000 pcs.
0.6902 €
2500 pcs.
0.6307 €
*incl. VAT plus shipping costs
**Subject to prior sale

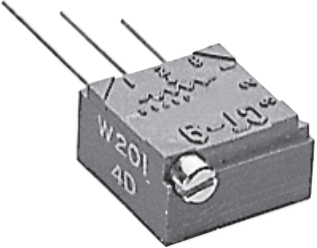

Trimmer potentiometer, CT-9EW-101-100 OHM, Nidec Copal
Cermet trimmer with 18 turns. Suitable for general use. Allows for precise fine tuning. The resin material used is UL Recognized 94V-0, excluding adhesives. The trimmer is designed for top adjustment.
Technical specifications
| ohmscher Widerstand | 100 Ω | |
| Anschluss | Lötstift | |
| Ausführung | Cermet-Trimmpotentiometer | |
| Breite | 9 mm | |
| Drehbereich (elektrisch) | 5400 ° | |
| Drehbereich (mechanisch) | 6480 ° | |
| Einstellung | oben | |
| Höhe | 5 mm | |
| Kontaktabstand | RM 2,5 | |
| Länge | 9 mm | |
| Leistung | 0.5 W | |
| max. Anzahl der Umdrehungen | 15 | |
| max. Temperatur | 120 °C | |
| min. Temperatur | -55 °C | |
| Montage | THT | |
| Toleranz | ±10 % | |
| Temperaturkoeffizient | ±100 ppm/K | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85334010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
