4710KL-04W-B50-E00 | NMB-Minebea

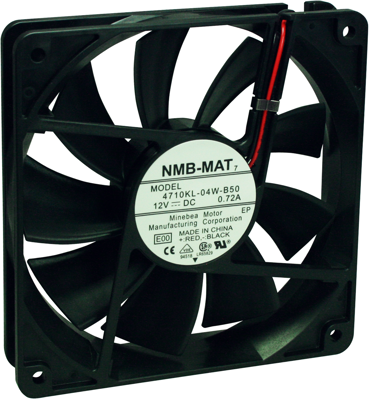

DC axial fan, 12 V, 119 x 119 x 25 mm, 195 m³/h, 41.5 dB, ball bearing, NMB-Minebea 4710KL-04W-B50-E00
Unit Price (€ / pc.)
38.6750 € *
Available: 8 pcs.
Leadtime: On Request **
Total Price:
38.68 € *
Price list
Quantity
Price per unit*
1 pcs.
38.6750 €
10 pcs.
36.7472 €
25 pcs.
34.1649 €
50 pcs.
29.1907 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC Axial fan, 4710KL-04W-B50-E00, NMB-MINEBE
Features
- Insulution resistance 10 ohm minimum at 500 VDC
- Reverse polarity protection, blocking protection with automatic restart, blowing over bars
- Rated voltage: 12 V DC
- Ball bearing
Technical specifications
| Version | DC axial fan | |
| Width | 119 mm | |
| speed | 2800 1/min | |
| Height | 119 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 6.6 W | |
| Rated voltage | 12 V | |
| Sound pressure level | 41.5 db | |
| Depth | 25 mm | |
| Volume flow | 195 m³/h |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
